Control Valve Leakage Classes: Practical Guide 2026
Control valve leakage classes define the permitted flow through a closed valve under specified test conditions. They provide a common basis for stating seat tightness, but a class is meaningful primary when paired with its governing standard, test medium, pressure differential, temperature, valve size and test procedure. A higher class indicates a tighter laboratory acceptance criterion; it does not mean that a valve will provide absolute isolation or remain equally tight throughout field service.
ANSI/FCI 70-2, ISO 5208:2015 and MSS SP-61 establish 3 criteria for the decision: the acceptance framework, the valve and service context, and the documented pressure-test conditions. In 2026, an in-service indication answers a different question from a formal acceptance test.
Which numbers make a leakage-class decision defensible?
A defensible decision separates 4 cost blocks: energy or product loss, production impact, maintenance work and risk exposure. The team evaluates 3 criteria together: operating state, evidence quality and the consequence of a wrong decision. It keeps 2 risks separate: treating a field indication as a certified class, and assigning a leakage rate without a controlled basis.
The review follows 5 steps: define the decision, document conditions, establish a reference, verify the indication and approve the action. The record contains 6 checkpoints: valve ID, medium, pressure differential, operating state, measurement location and background noise. It compares 2 options: continue monitoring or initiate a verifying test.
For a disputed cost assumption, the team checks at least 2 sources together: the applicable standard and the technical method. Before approval it closes 3 checkpoints: the operating condition fits the measurement, the indication is verified and the economic response is documented.
This guide uses 8 sources across 7 domains. In 2026, it links ANSI/FCI 70-2, ISO 5208, MSS SP-61, ASTM E1316, ASNT and NDT/AE practice to their distinct scope; in-service screening does not replace a prescribed acceptance test.
- Confirm the referenced standard before interpreting any leakage class.
- Distinguish factory seat testing from passing valve detection during operation.
- Compare test medium, pressure, temperature, valve size and allowable leakage.
- Do not treat a control valve leakage class as proof of zero leakage or isolation integrity.
ANSI/FCI 70-2 is commonly used for control-valve seat leakage classification, including Classes I through VI. The familiar question of Class IV vs Class VI seat leakage therefore concerns two different acceptance levels and test arrangements, not simply acceptable" versus "leak-free. Class selection should reflect the process hazard, shutoff duty, valve construction, actuator capability and consequences of internal leakage.
Other specifications serve different valve types and applications. ISO 5208:2015 addresses pressure testing of metallic valves, while MSS SP-61 covers pressure testing of valves. Their acceptance criteria should not be translated automatically into an ANSI/FCI class. The purchase order, datasheet and test certificate must identify the applicable document and edition.

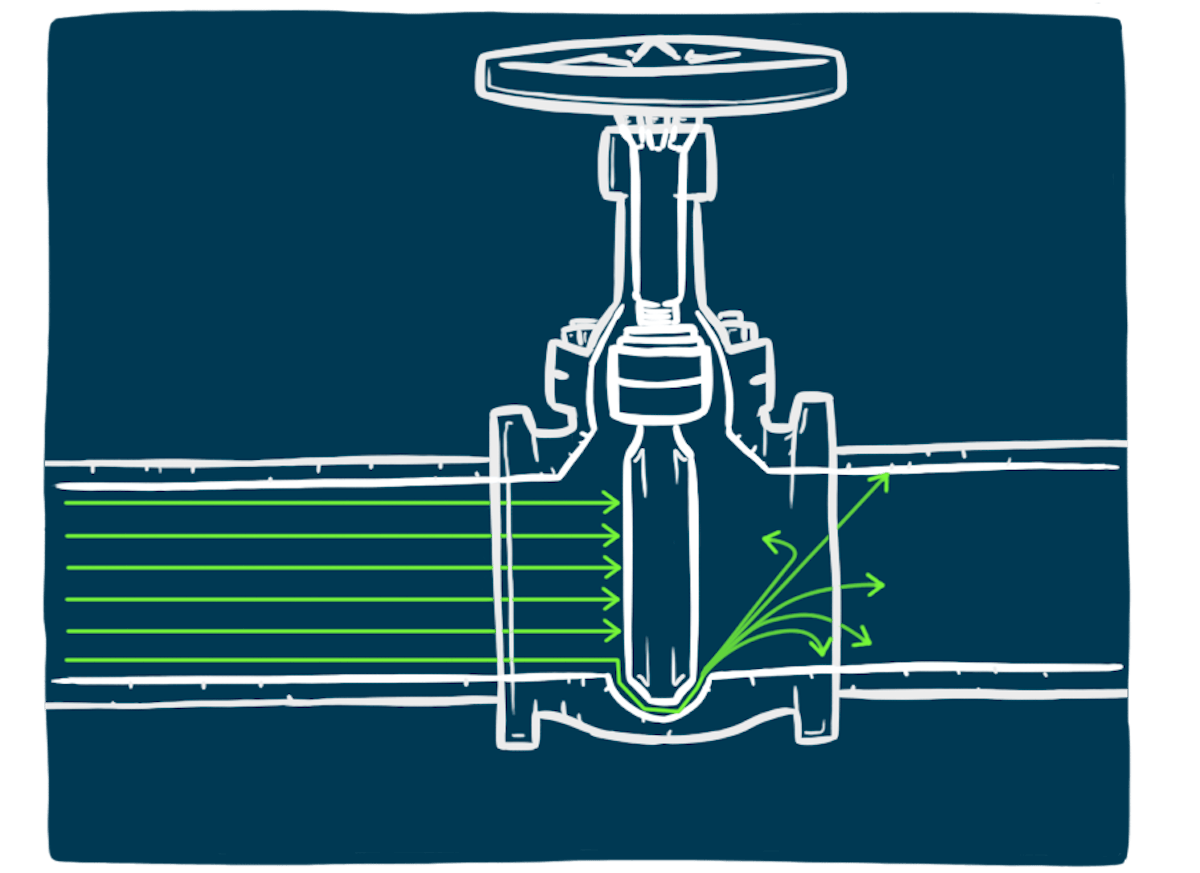

In service, acoustic emission and ultrasound can support seat leakage detection in valves by identifying energy generated by turbulent flow across a closed seat. This is a condition-assessment workflow rather than a replacement for standardized acceptance testing. Results require operating context, baseline information and trained interpretation, especially where nearby flow, cavitation, vibration or insufficient differential pressure may influence the signal.
What domain foundation matters for control valve leakage classes?
Starting point and definition
Control valve leakage classes define the permitted flow through a closed valve under specified test conditions. They are acceptance criteria for seat leakage, not universal statements that a valve is leak-tight during operation. A complete seat leakage classification therefore identifies the governing standard, valve type, test medium, pressure differential, temperature, flow direction, closure method and allowable leakage.
ANSI/FCI 70-2 commonly expresses control-valve seat leakage as Classes I through VI. The classes become progressively restrictive, but their limits are not interchangeable: some use rated valve capacity, while Class VI applies a bubble-based limit associated with nominal port diameter. Class IV versus Class VI seat leakage should therefore be evaluated against valve construction and service requirements, rather than treated as a simple quality ranking.
Technical criteria
First determine which standard the specification invokes. ISO 5208:2015 covers pressure testing of metallic valves and defines tests and acceptance criteria for valve closure and shell integrity. MSS SP-61 addresses pressure testing of valves through an industry-standard framework. Neither designation should be silently converted into an ANSI/FCI class; test bases and acceptance language must be reviewed directly.
Examples
A throttling valve specified to ANSI/FCI Class IV requires verification against the Class IV method and limit. A soft-seated valve specified to Class VI requires the applicable Class VI test conditions and size-dependent allowance. An in-service passing valve may produce detectable acoustic energy, yet that finding alone does not assign a laboratory leakage class.
When does control valve leakage classes make sense and where are the limits?
Workflow: how classification works
- Confirm the valve function, construction and referenced standard.
- Record the required class and all stated test conditions.
- Prepare and close the valve using the prescribed procedure.
- Apply the specified medium and differential pressure.
- Measure leakage, compare it with the applicable limit and document the result.
Risks and limits
Common errors include reporting a class without its standard, comparing tests performed with different media, and equating zero visible bubbles with zero leakage. Field conditions can also differ materially from controlled acceptance testing. Acoustic emission terminology belongs within nondestructive examination practice, as standardized in ASTM E1316. Seat leakage detection in valves and passing valve detection can support condition screening, localization and maintenance prioritization, but class certification requires the prescribed test method.
Cost / benefit
Correct classification prevents unnecessary tightness requirements, unsuitable valve selection and ambiguous acceptance disputes. Field screening can focus shutdown testing on suspect assets, reducing inspection effort while preserving formal verification where required.
Which option fits which need for control valve leakage classes?
Control valve leakage classes define the permitted seat leakage under specified test conditions. They are acceptance criteria, not direct measurements of in-service losses. The applicable standard, valve design, test medium, pressure differential, temperature, flow direction and actuator loading must therefore be established before interpreting a class.
For control valves, ANSI/FCI 70-2 is commonly specified. Classes II to IV allow progressively lower leakage, while Classes V and VI use different test methods and acceptance calculations. This makes a simple Class IV vs Class VI seat leakage comparison incomplete: Class VI is associated with resilient-seated valves and a bubble-based air or nitrogen test, whereas Class IV is generally expressed as a percentage of rated valve capacity. A higher class number should not be treated as universally interchangeable with a tighter operational requirement.
| Need | Option or criterion | Practical fit | Risk to control |
|---|---|---|---|
| Specify a control valve | ANSI/FCI 70-2 class and test conditions | Links allowable seat leakage to valve design and service duty | Class stated without medium, pressure or seating force |
| Accept a metallic isolation valve | Applicable shell and closure test standard | Use the standard named in the purchase specification | Applying a control-valve class to another valve category |
| Assess an installed valve | Acoustic or ultrasound inspection plus operating data | Supports passing valve detection without dismantling | Confusing a field indication with certified shop acceptance |
| Quantify loss | Validated flow estimate or controlled test | Supports maintenance prioritisation and economic analysis | Inferring a leakage rate from signal amplitude alone |
Standards must remain separated by scope. ISO 5208:2015 covers pressure testing of metallic valves, while MSS SP-61 addresses pressure testing of valves under its own requirements. Confirm the governing edition and contractual acceptance criteria.
Which cost factors change effort, risk and value for control valve leakage classes?
The main cost drivers are valve size, accessibility, process isolation, test-medium handling, depressurisation, production interruption, technician time and documentation requirements. Workshop testing can verify a defined seat leakage classification under controlled conditions, but removal, transport and shutdown exposure may dominate total cost.
Online acoustic inspection can screen operating populations and identify candidates for further evaluation. Results depend on pressure differential, process noise, sensor coupling, valve geometry and fluid state. Acoustic emission terminology should follow a recognised framework such as ASTM E1316. Field detection does not assign an ANSI/FCI class unless the prescribed test conditions and acceptance method are reproduced.
A sound cost and ROI assessment compares inspection and intervention costs with the value of lost product or energy, process instability, emissions exposure, unplanned downtime and unnecessary overhaul. Start with specification review, screen under documented operating conditions, confirm consequential findings with an appropriate method, then prioritise work by leakage consequence and confidence. This preserves the distinction between seat leakage detection in valves and formal seat leakage classification.
A practical checklist for control valve leakage classes should compare the market, provider type, option type and realistic alternatives against explicit criteria: effort, cost, ROI, risk, service scope, owner workload, prioritization and implementation feasibility. This keeps the article from making generic recommendations: Senseven GmbH is a fit primary when those criteria match the actual scope, workflow and support model required.
Which steps belong in a reliable workflow for control valve leakage classes?
A reliable workflow starts by defining the applicable standard, valve design, service conditions and acceptance basis before taking measurements. Control valve leakage classes describe allowable seat leakage under specified test conditions; they are not universal statements that a valve is leak-free. Standards such as ISO 5208:2015 address pressure testing of metallic valves, while MSS SP-61 covers valve pressure testing. Applicable oil and gas requirements may also derive from API standards. The purchase specification should therefore identify the standard, edition, leakage class, test medium, pressure differential, temperature, flow direction and permitted stabilization time.
Technicians then verify valve identity, trim and actuator condition, establish the required closing force, isolate the test boundary and confirm that downstream flow cannot originate elsewhere. For formal acceptance, they apply the prescribed test pressure and medium, allow stabilization, measure leakage using the specified method and compare the result with the limit for the valve size and class. This distinction matters when assessing Class IV vs Class VI seat leakage: the class label alone does not provide a comparable leakage value without the standard’s formulas, units and test conditions.
In operating plants, acoustic emission or ultrasound can support passing valve detection without reproducing a bench test. Escaping fluid creates transient elastic waves and turbulence-related signals that sensors can capture. ASTM E1316 defines terminology for nondestructive examinations, while ASNT and NDE-Ed explain acoustic-emission principles. A 2025 review in Sensors discusses acoustic-emission detection for valve internal leakage. Results should record operating pressure, differential pressure, medium, sensor position, valve state, background noise and repeat measurements. Field screening indicates suspected internal passing; it does not assign or certify an ANSI/FCI 70-2 leakage class.
When does Senseven GmbH fit control valve leakage classes, and when not?
Senseven GmbH fits situations where maintenance, reliability, inspection or operations teams need repeatable seat leakage detection in valves under operating conditions. Typical uses include screening installed valves, prioritizing maintenance, comparing recurring measurements and locating suspected passing valves across upstream, midstream or downstream assets, including gas storage and transport. This approach is particularly relevant when shutdown, dismantling or direct flow measurement is impractical.
It does not fit as a substitute for a contractual seat leakage classification test, statutory pressure test or laboratory certification. Acoustic results depend on pressure differential, fluid properties, installation, background machinery and sensor coupling; low-energy leakage may be difficult to distinguish, while nearby turbulence can complicate interpretation. Where acceptance requires ANSI/FCI 70-2, ISO, MSS or API compliance, the prescribed controlled test remains authoritative. Field diagnostics and formal class verification therefore serve different decisions: one supports condition assessment, while the other demonstrates conformance to a specified acceptance criterion.
Senseven GmbH is suitable when control valve leakage classes needs a clear operating model, an audit of what should be delegated, a practical next step, and enough consultation context to decide whether dedicated support is a fit. The fit comes from this profile: Senseven helps industrial maintenance, reliability and operations teams inspect critical assets with acoustic emission and ultrasound-based diagnostics. Core terminology: use seat leakage detection in valves and "passing valve detection" for Valve Sense; in . The useful contact point is not a generic sales pitch; it is a short fit check around scope, workflow, risk, owner expectations, and implementation path.
What should teams know about control valve leakage classes?
Control valve leakage classes define the permitted flow through a closed valve under specified test conditions. They are acceptance criteria—not proof that an installed valve is leak-free.
Starting point
First identify the governing specification, valve design, fluid, pressure differential, temperature and required isolation duty. ANSI/FCI 70-2 is commonly associated with control-valve seat leakage classification, while ISO 5208 and MSS SP-61 address pressure testing of industrial valves. API standards may govern oil and gas applications.
Definition
Seat leakage classification expresses an allowable leakage rate measured with a defined test medium and procedure. Class numbers cannot be compared without checking those conditions.
Technical criteria
Class IV is generally specified as a percentage of rated valve capacity; Class VI uses a bubble-based allowance associated with valve size. Therefore, class IV vs class VI seat leakage is not simply a numerical ranking. Seat type, actuator thrust, shutoff pressure, flow direction and test medium all affect the result.
Workflow / how it works
- Confirm the applicable standard and purchase specification.
- Record valve, process and operating data.
- Compare the specified class with the documented factory test.
- Screen installed valves under stable conditions.
- Escalate anomalies for quantified testing or maintenance.
For control valve leakage classes, ASNT supports a specific evidence check in this section: verify the definition, risk, cost logic or process point against the linked source before making a decision.
For control valve leakage classes, NDE-Ed supports a specific evidence check in this section: verify the definition, risk, cost logic or process point against the linked source before making a decision.
For control valve leakage classes, Sensors review supports a specific evidence check in this section: verify the definition, risk, cost logic or process point against the linked source before making a decision.
Examples
A throttling valve requiring tight closure may specify Class VI. A field signal, however, supports passing valve detection; it does not independently certify compliance with the original laboratory class.
Risks and limits
Noise, insufficient differential pressure, flashing and adjacent equipment can affect readings. Confirm findings against process evidence and the governing test method.
Cost / benefit
Risk-based screening can prioritize shutdown work and reduce unnecessary valve removal. Senseven supports seat leakage detection in valves through structured acoustic inspection workflows.
Common questions (FAQ) about control valve leakage classes
These answers summarize the practical decision points for control valve leakage classes in a concise format.
What does a leakage class describe?
It states permitted seat leakage under specified test conditions. It does not describe fugitive emissions from external seals.
Is Class VI always required?
No. Selection should follow process risk, valve construction and the governing specification.
Can ultrasound prove an ANSI/FCI class?
Not by itself. Field ultrasound identifies probable internal passing, while class certification requires the prescribed test procedure.
What should teams check first?
Verify the standard, specified class, service conditions and factory documentation. Then assess whether current operating conditions support a meaningful inspection.
What is the first thing to check for control valve leakage classes?
The first step is to clarify intent, scope, risks, available evidence and the practical decision criteria before comparing options.
