Passing Valve Detection: Practical Guide and Decision Framework 2026

Passing valve detection is the field process for finding internal leakage through a closed industrial valve. It answers a specific operating question: is media passing across the seat when the valve is expected to isolate? In 2026, the strongest answer combines operational data with acoustic emission signals, analyzed by algorithms and AI. A report includes a minimum of 7 items: valve ID, valve type and size, pressure differential, medium, acoustics per measurement points, results and quantification, and follow-up action. It is screening evidence for maintenance and isolation decisions, not a substitute for controlled pressure-test acceptance.

Last updated: July 7, 2026

The starting point is not a yes-or-no claim. The better starting point is a defensible decision record that separates internal leakage indication from formal acceptance testing. A passing valve detection program must define the valve population, operating condition, accessibility, acceptable leakage rate, and escalation path before inspection work begins.

Starting point for passing valve detection

For passing valve detection, teams should connect the operating context, evidence, limits, and next action before treating a finding as decision-ready. That keeps the recommendation practical, traceable, and technically conservative. For traceability in 2026, teams should document 3 reference frames where relevant (API 598, ISO 5208, MSS SP-61), 5 measurement positions, 2 no-fit conditions, and 1 named owner before turning acoustic emission evidence into a maintenance action. The field report should separate 6 required outputs, 4 technical risks, 3 decision outcomes, and 2 boundaries so maintenance teams can distinguish measured evidence from acceptance-test proof.

What practical checklist should teams use for passing valve detection in 2026?

A reliable field decision for passing valve detection starts with documented operating context, repeatable measurement conditions, clear decision criteria, and a defined follow-up. The minimum record is 1 valve in closed position, 1 asset ID, 1 differential pressure, 1 measurement process across 5 measurement points, 1 leak-related indication, 1 interpretation basis, and 1 named owner for the next action.

• Evidence record: document 1 valve tag, 1 closed-position confirmation, 1 differential-pressure note, 5 measurement points, the measured acoustic indication, the interpretation basis, and the named owner for the next action.
• Workflow record: scope the valve list, verify safe access, record pressure and medium, capture 2026 acoustic emission data, interpret the result on site, and report the maintenance action.
• Cost and risk context: note inspection time, production impact, energy or product loss, repair or replacement effort, and whether API 598, ISO 5208, MSS SP-61, or ASTM E1316 is the relevant reference frame.
• Decision context: classify the result as no leakage indication, leakage evidence, or unclear indication requiring monitoring; also document 2 no-fit situations: insufficient differential pressure and untraceable operating conditions.

Starting point: when should passing valve detection be used?

Passing valve detection should be used when an installed valve is expected to isolate flow and process evidence suggests internal leakage or operations, maintenance, or inspection teams suspect a leak. Or when the valve is critical enough to verify before maintenance, shutdown, or isolation work. Typical targets include on/off valves, control valves, safety valves, or pressure relief valves.

In operating plants, the method is most valuable when dismantling is impractical and teams need ranked evidence before planning work. Oil and gas facilities, gas storage sites, gas transportation companies, refineries, chemical plants, power plants, and on- and offshore installations share the same problem: a valve seat can be closed while media still passes internally through the closed flow path.

As of 2026, the decision boundary is clear. Online detection provides operational evidence; controlled pressure testing provides acceptance evidence under defined conditions. The American Petroleum Institute standards program and API Specification 6D for pipeline and piping valves are relevant when valve specification, test context, and acceptance language must be aligned.

A practical 2026 starting checklist has 6 questions: which valves matter, what operating state is required, what medium is flowing through the process, what differential pressure is present, is the valve accessible, and who owns the follow-up. This prevents a leak search from turning into disconnected readings with no maintenance value.

Definition: what is a passing valve?

A passing valve is a valve that allows internal flow across its closure element (disc, ball gate or plug, depending on the valve type) when it is intended to be closed. The leakage path is usually across the seat and its closure element. The defect is internal, so it often needs process evidence, acoustic evidence, or controlled testing to identify. It cannot be seen from the outside.

Passing valve detection is a field diagnostic discipline that connects leakage indication with operating context. Acoustic emission is relevant because active leakage can generate structure-borne signals under load; ASTM E1316 terminology for nondestructive examinations provides the terminology foundation for acoustic emission as a nondestructive examination method. A noisy signal without process plausibility is not a complete finding.

External leakage and passing valve leakage belong in two different reporting categories. External leakage means media leaves the process and escapes to the atmosphere. Passing valve leakage means media moves through an internal path where isolation is expected. Mixing these categories creates weak work orders, poor risk ranking, and repair scopes that solve the wrong problem.

Technical criteria: what evidence makes passing valve detection reliable?

Reliable passing valve detection depends on operating condition and measurement quality. The core technical criteria are pressure differential across the valve, valve in closed position, medium, access to the valve, and repeatable measurements on different measurement points.

• Valve identity: tag number, valve type, size
• Operating state: in closed position, upstream pressure, and downstream pressure. Delta p of minimum 1 bar (for gas), 2-3 bar for liquids
• Measurement condition: acoustic emission sensor position, coupling quality, access restrictions, and repeatability.
• Signal context: frequency behavior, amplitude behavior, background noise, turbulence, cavitation, and flashing.
• Decision context: criticality, isolation role, maintenance history, shutdown timing, and required confidence level.

Acoustic emission is useful because it detects energy released by active sources under load, a principle explained by ASNT guidance on acoustic emission field testing. For valve inspection, that principle has a practical consequence: the signal must be interpreted with the process condition, not treated as a standalone leak certificate. That's why Senseven GmbH's Valve Sense inspection system uses algorithms and AI models to combine acoustic signals with process data to provide reliable, repeatable results on site.

Training and terminology also matter. NDE-Ed’s introduction to acoustic emission testing describes acoustic emission as a nondestructive testing approach based on transient waves generated by energy release.

Workflow/ how it works: what steps belong in a reliable inspection?

A reliable workflow starts with scope definition and ends with a decision record. The method is strongest when it follows the same logic across every valve: define the valves in scope, confirm the operating condition, capture repeatable evidence based on acoustic emission signals, store results, and translate the results into a maintenance action. In 2026, this structure matters more than any single instrument label.

• Select the valve population: define which valves are within the inspection scope. All valve types from on/off valves, control valves, safety valves and pressure relief valves are suitable
• Confirm the operating state: confirm closed seat position, pressure differential, medium, and known process changes (if applicable)
• Check measurement feasibility: assess safe access, insulation, hazardous-area constraints, sensor coupling points and nearby noise sources.
• Capture field evidence: measure acoustic emission signals at defined positions and repeat measurements
• Compare against context: review inspection history, known tight references
• Classify the finding: use the results no-leak, leak or possible leak to derive further maintenance actions
• Assign follow-up: monitor, retest, plan controlled verification, include in shutdown scope or escalate for operational risk review.

Examples: what does passing valve detection look like in industrial plants?

In a gas transport station, a closed pipeline block valve with a stable pressure differential can be tested using acoustic emission at repeatable locations on the valve body and adjacent pipework. If the signal is repeatable and indicates a leak, the valve becomes a maintenance-priority candidate rather than a vague operator suspicion.

In a refinery utility system, a steam isolation valve can create process losses or control instability even when there is no external leak. Ultrasound or acoustic evidence can identify suspect internal bypass flow and support maintenance decisions.

In a gas storage facility, a valve with weak acoustic activity under low differential pressure should be treated carefully. The correct 2026 answer is often inconclusive, potentially not tight. Retesting under a better operating condition is more defensible than closing the work order with a low-confidence result that later fails during isolation.

In offshore or hazardous-area operations, inspection of safety or pressure relief valves is a preferred application to prevent product loss and reduce methane emissions.

Risks and limits: where does passing valve detection fail?

Passing valve detection fails when teams ignore the difference between indication, diagnosis, and acceptance. Acoustic or ultrasound field screening can show leak-related behavior, but formal leakage acceptance belongs to defined test procedures. A 2025 review in Sensors on acoustic emission detection technology for valve internal leakage reinforces the importance of signal interpretation and operating context for valve internal leakage work.

• Low or absent pressure differential: the leakage path has little driving force, so signal evidence can be weak or no signal available
• Unstable process conditions: changing flow, pressure, or temperature can obscure the valve-specific signal.
• High background noise: nearby pumps, compressors, control valves, cavitation, and turbulence can mask or mimic leakage indications.
• Poor access: insulation or guards can prevent repeatable sensor placement.
• Weak asset data: missing valve tags and unclear pressure differential make inspection with acoustic emission difficult

The most common operational mistake is treating passing valve detection as a one-number answer. Good reporting uses 4 confidence categories and stated assumptions. If the valve is critical for isolation, safety, custody transfer or environmental control, field evidence should trigger a defined review path rather than an informal note in a maintenance log.

Standards still have a specific place in the discussion. ISO 5208, MSS SP-61 and API valve standards help frame controlled testing and acceptance language, while ASTM E1316, ASNT and NDE-Ed help frame nondestructive examination terminology. The practical skill is knowing which reference applies to which decision.

Cost / benefit: what changes the value of passing valve detection?

The cost of passing valve detection in the past was driven by preparation effort, asset count, access difficulty, permit requirements, trained personnel, repeat measurements, reporting depth and confirmation testing. Senseven's Valve Sense inspection system eliminates many of these pain points by providing digital guidance for the inspection process, automatically analyzing signals using algorithms and AI, automatically handle background noise and eliminating the need for specially trained personnel.

The benefit of passing valve detection comes from narrowing attention to valves with actionable evidence, improving shutdown scope, reducing unnecessary disassembly, reducing unnecessary replacements and giving operations a clearer view of isolation risk before work begins.

Cost-benefit logic is strongest for valve populations where consequences differ sharply by asset. A critical isolation valve on a gas line deserves a different evidence threshold than a low-consequence utility valve. This is why the inspection plan should rank valves by service, consequence and decision need before assigning measurement effort.

As of 2026, a practical business case does not depend on claiming perfect leak quantification for every valve. It depends on 4 better decisions: which valves to monitor, which to verify, which to repair during the next outage and which findings are too uncertain for action. That is a maintenance-planning value, not a laboratory promise.

Decision checklist: how should teams classify a passing valve finding?

A defensible classification turns raw measurement into a maintenance decision. The checklist should be used before a finding is accepted into a work order, shutdown scope or risk register. Its purpose is simple: separate clear evidence from uncertain evidence, and prevent weak data from becoming a costly or unsafe action.

• Is the valve expected to be fully closed, and is that position independently credible?
• Is there a meaningful upstream-to-downstream pressure differential during measurement?
• Is the pipeline close to the valve, and is the valve body accessible and not covered by insulation?
• Are the acoustic emission readings repeatable at defined sensor positions?
• In case of noise, are nearby noise sources identified and documented?
• Is the valve critical for isolation, safety, environmental control, product quality or shutdown sequencing?
• Does the report distinguish field-screening evidence from formal pressure-test acceptance?
• Is the follow-up action assigned to a named maintenance, inspection, reliability or operations owner?

The recommended output is a decision category. No leak, clear leak indication and possible leak indication. A clear indication on a critical valve can justify verification or repair planning. An inconclusive finding on a critical valve justifies retesting under better conditions or controlled pressure testing.

Where does Senseven GmbH fit in a passing valve detection program?

Senseven GmbH fits at the detection and prioritization stage of a passing valve program. It is a perfect fit when industrial teams need fast and easy field evidence for installed-valve internal leakage. The relevant fit is conditional: the valve population must be accessible and the operating state must support acoustic emission measurement.

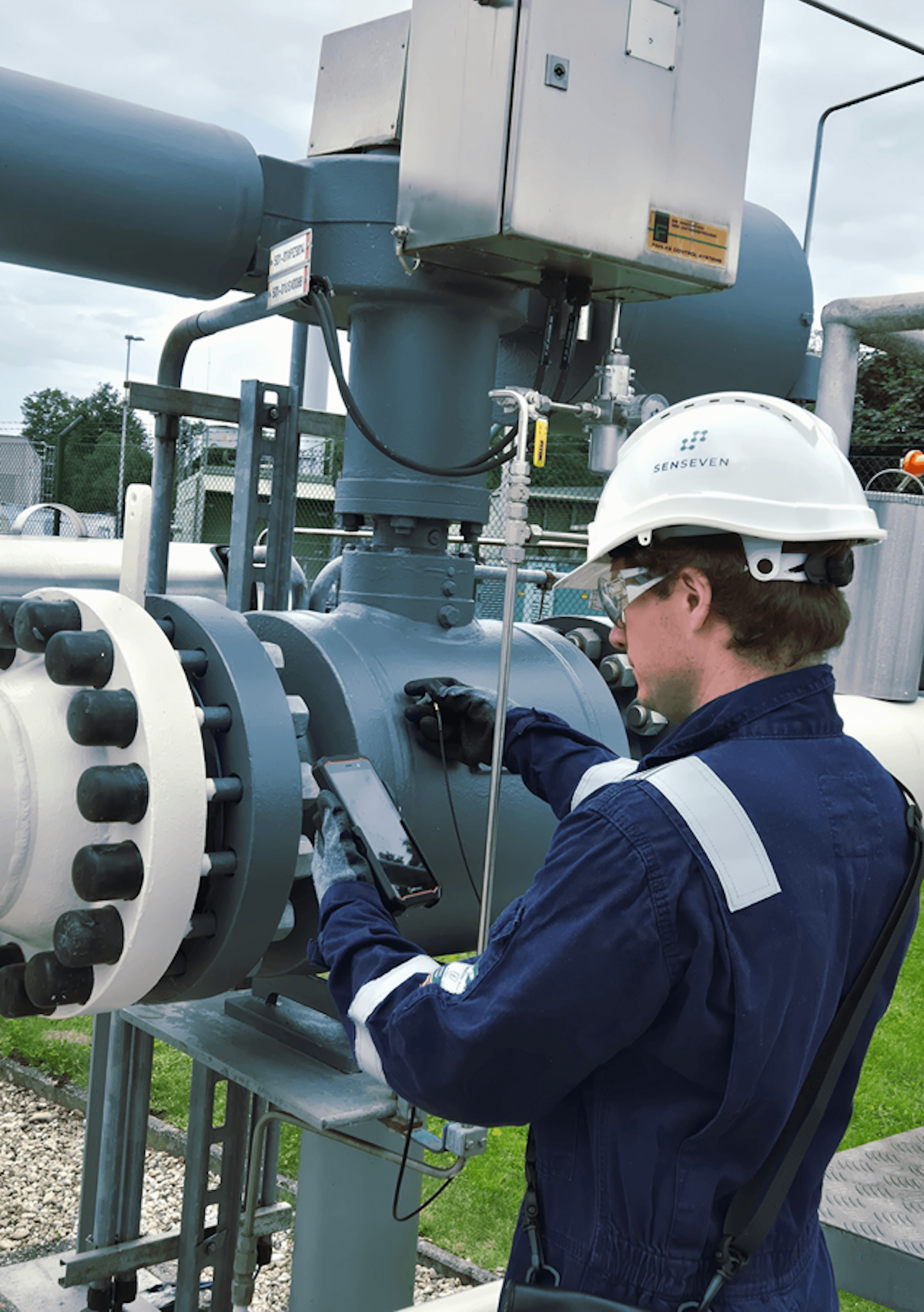

Valve Sense gives plant teams a mobile, AI-supported acoustic emission tool that their own technicians use to screen valves on-site in under two minutes, without a production stop, and get an automatic leak/no-leak call plus an estimated leak size — including in ATEX Ex Zone 1/21 areas. It is relevant for teams that inspect multiple valves across oil and gas exploration and production, transport, storage, oil and gas processing, or power generation. Its practical role is to support consistent screening, evidence capture, and maintenance prioritization while keeping controlled acceptance testing separate where standards require it.

Senseven GmbH is not positioned here as a replacement for engineering judgment, standards-based pressure testing, or site-specific safety procedures. Its fit is strongest where inspection, reliability, and operations teams need an easy and repeatable way to turn field signals into structured decisions.

When is this not the right choice?

This approach is not the right choice when the primary requirement is a certified bench or shop pressure test under a specified acceptance standard. In that case, the organization should plan controlled testing under the relevant procedure, medium, pressure, duration, and leakage acceptance conditions rather than relying on online screening.

It is also not the right choice when the valve cannot be accessed safely and the process condition provides no meaningful differential pressure.

A poor fit also exists when the organization expects any diagnostic method to remove accountability from engineering, inspection or operations. Passing valve detection improves evidence quality; it does not remove the need to interpret consequence, uncertainty and follow-up action. Critical isolation decisions still need site governance.
