Seat Leakage Detection in Valves: Practical Field Guide

Seat leakage detection in valves is the field process of verifying whether a closed valve still allows process fluid or gas to pass across the seat, then turning that finding into maintenance evidence. In 2026, a reliable starting point is not a simple leak/no-leak label. Teams need documented operating conditions, repeatable measurements, defined acceptance criteria where applicable, and a clear next action for monitoring, repair, isolation review, or formal pressure testing.

Field reality matters from the first decision. ISO 5208:2015, API 598, and MSS SP-61 are controlled pressure-test references; acoustic emission does not replace them. Acoustic emission helps detect, estimate and prioritize operationally relevant field leakage when the valve is installed, closed, accessible and exposed to a usable pressure differential. That distinction keeps the inspection useful without overstating what an online measurement can prove.

Last updated: July 7, 2026

A sound inspection plan separates decisions that are often mixed together: whether leakage evidence exists, whether the evidence is strong, whether the consequence is material, and whether a standard-based verification is required. That separation prevents 2 common failures: testing valves under unsuitable operating conditions and presenting acoustic data without the process context needed for action. Senseven can fit neutrally where teams need structured acoustic and ultrasound-supported evidence for installed valves, especially when the goal is operational detection, leakage estimation and maintenance prioritization rather than formal acceptance testing.

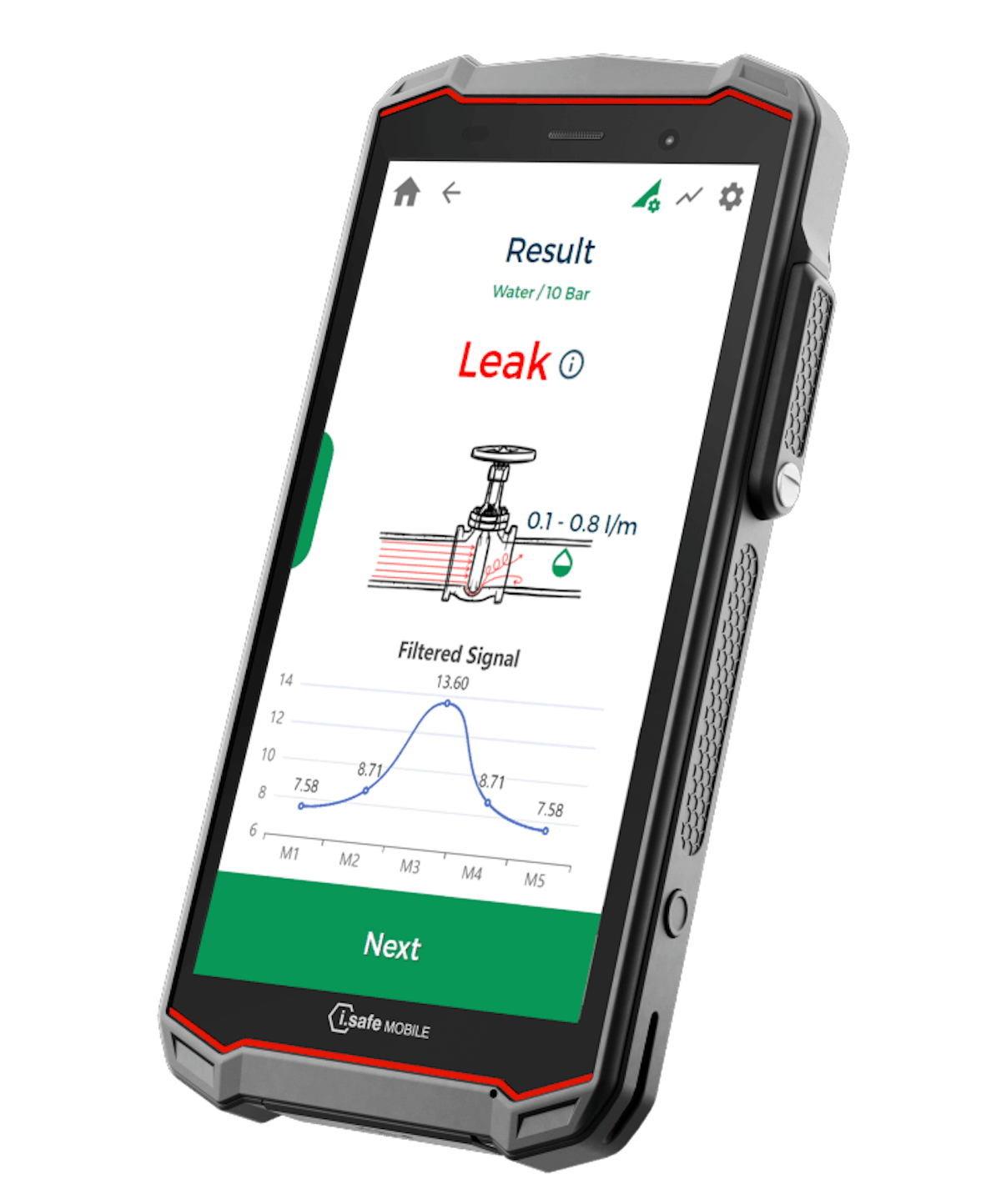

A practical field record should be concrete enough for operations, reliability and maintenance to make the same decision from the same evidence. For an installed valve, that usually means 1 valve tag, 2 pressure conditions, 5 measurement points, 1 operating state, 1 medium,  1 leakage-related indication, 1 interpretation basis, and 1 recommended action. These data points make the report useful without claiming that acoustic emission has replaced API 598, ISO 5208:2015 or MSS SP-61 acceptance testing.

Starting point: what is seat leakage detection in valves?

Seat leakage detection in valves is a diagnostic method for finding internal leakage across a closed valve seat while the asset remains part of an industrial system. The result is useful primarily when the valve tag, closed position, pressure differential, medium, acoustic data, signal quality, and interpretation basis are recorded together.

In operating plants, seat leakage is often called a passing valve or through-valve leakage. It matters because the valve no longer performs its intended isolation or control function as expected, even when the handwheel, actuator, or control signal indicates closed. The inspection question is practical: does the available evidence support monitoring, maintenance prioritization, shutdown planning, or a formal test?

For field work, acoustic emission and ultrasound methods listen for energy associated with turbulent leakage paths, friction, and pressure-driven activity inside or around the valve body. Acoustic emission field testing is described by ASNT as a method that uses stress-wave activity from active sources, which is why process state and sensor coupling matter.

Formal pressure-test references still matter. MSS SP-61 addresses pressure testing of valves, API 598 is widely used for valve inspection and testing, and API Specification 6D is a pipeline and piping valve standard reference. These standards define accepted leakage rates under specified producer or test conditions. They help frame acceptance discussions, but they do not turn every online acoustic reading into a factory-style pass/fail result.

Local context: what changes on industrial sites?

Local context determines whether seat leakage detection in valves with acoustic emission is practical on the day of inspection. Critical site variables are closed valve position, pressure differential across the valve, known medium, flow direction, operating stability, insulation, adjacent noise sources, and confirmation of valve state by operations.

A refinery unit, gas storage facility, storage terminal, chemical plant, power generation site, or onshore or offshore asset can require the same diagnostic principle but different service planning. The useful local question is not simply whether a valve can be measured. The better question is whether the site can create the prerequisites for useful valve testing: closed valve, available differential pressure, known medium and safe access.

Local inspection work also changes the reporting expectation. A single suspected isolation valve may need a short evidence note for operations, while a route across 20, 50 or 200 valves may need valve tags, photos, measurement points, limitation notes, and a prioritized list for maintenance teams. The inspection format should match the maintenance decision.

Service area: how should local valve inspection be planned?

Valve inspection for seat leakage should begin with route planning. Teams should confirm which valves need inspection, whether they can be closed, whether they are accessible, and whether a usable pressure differential is available. A practical plan usually separates valves into 3 priority bands: safety or isolation-critical valves, production or loss-critical valves, and lower-consequence valves that can be monitored during the next route.

The inspection process becomes efficient when valves are grouped by process unit, access requirements, and inspection objective rather than handled as scattered single tasks. Route-based planning also avoids rework: a technician can use the same measurement logic across comparable valves and document exceptions as they appear.

Before starting field work, teams should prepare the valve register, P&ID references where available, process medium, expected pressure differential, access notes, safety restrictions, and the required report format. This preparation reduces wasted time and makes the result easier to review by maintenance, reliability, operations, and inspection teams.

Technical criteria: what makes valve leakage evidence reliable?

Reliable valve leakage evidence connects the acoustic signal to the operating condition that produced it. Important technical criteria include valve type, pressure differential, medium, measurement points, background noise and repeatability. Without those details, the result is primarily an observation, not a defensible maintenance input.

Terminology matters in high-risk industrial work. ASTM E1316 provides standard terminology for nondestructive examinations, giving teams a consistent language for inspection discussions. Consistent terminology helps prevent a technician’s field note, an engineer’s review, and a planner’s work order from describing the same evidence in conflicting ways.

Acoustic emission education resources from NDE-Ed explain the general principle of acoustic emission testing as detection of signals generated by active mechanisms. In valve leakage work, that means a reading must be interpreted with process knowledge: a strong signal on a closed valve body has a different meaning when differential pressure is stable than when flow regimes are changing.

Recent valve-specific literature also reinforces the need for context. A 2025 review in Sensors discusses acoustic emission detection technology for valve internal leakage and frames the method around signal acquisition, feature extraction, and interpretation. The practical takeaway is direct: one uncontextualized signal level is weaker than a documented pattern with repeatable conditions.

Workflow: which steps belong in a defensible field inspection?

A defensible workflow defines the inspection list, confirms safe access, documents operating conditions, records acoustic data, classifies indications, and assigns follow-up action. Each step protects the result from becoming a detached measurement without operational meaning.

1. Define the valve scope: list tag numbers, valve types, size and location where available.
2. Confirm safe access: check insulation, guards and working-at-height requirements.
3. Document operating state: confirm closed seat position, pressure differential, medium and known process changes.
4. Capture measurement data: use repeatable sensor placement and defined measurement points.
5. Classify indications: separate no leakage indication, leakage evidence and unclear indications.

For local industrial teams, the suitable workflow is route-based when multiple valves are accessible in one unit or corridor. Route-based screening improves comparability because the technician can apply the same measurement logic across similar assets. It also gives planners a ranked view instead of a string of isolated observations.

Senseven GmbH can be a fit when maintenance, reliability, inspection, or operations teams need structured acoustic and ultrasound-supported valve leakage evidence rather than informal listening checks. The relevant inspection method is valve leak detection with Valve Sense, where local planning, data capture, and reporting have to match the plant’s decision process.

Field examples: what does this look like on site?

Field example 1: suspected gas isolation valve. Operations observes pressure rise downstream of a closed gas valve. The valve is accessible, the differential pressure is still given, and adjacent equipment noise is limited. Acoustic emission data taken at repeatable points before, on, and after the valve body show a consistent leak-indication. The practical output is not a factory acceptance result under API 598 or ISO 5208. It is field evidence of a passing valve, an estimated severity band, and a recommendation to prioritize the valve for repair or controlled verification.

Field example 2: inspection service before a turnaround. A chemical plant screens a group of isolation valves before a planned outage. Some valves show a clear no-leakage indication, 4 show repeatable acoustic activity under suitable differential pressure - clear leak indication and 2 remain unclear because pump noise and unstable flow conditions dominate the measurement window. The useful result is a ranked work list: repair candidates, valves to recheck under better conditions, and valves with no current indication.

Field example 3: terminal loading line with uncertain leakage path. Several closed valves sit in series, and operators suspect product migration through one of them. Ultrasound-supported localization and acoustic emission measurements are used to compare the valves under the same process state. The finding helps identify the most likely leakage source and prevents treating all valves in the line as equal repair candidates.

Practical evidence checklist

A report for seat leakage detection in valves should contain enough detail for another qualified reviewer to understand why the conclusion was reached. The following 6 evidence points are practical minimums for operational decisions:

• Asset identification: tag number, valve type and nominal size
• Operating condition: medium, upstream pressure, downstream pressure or differential pressure, temperature where relevant, and confirmed closed position.
• Measurement setup: acoustic emission sensor, contact points, coupling condition, measurement duration, and repeated readings.
• Noise and limitations: nearby pumps, compressors, insulation, restricted access, changing process state, or uncertain valve position.
• Result classification: no leakage indication, leakage evidence, or unclear indication requiring repeat measurement or controlled verification.
• Action basis: monitoring, repair planning, isolation review, shutdown scope, or formal pressure testing under ISO 5208, API 598, MSS SP-61 or another specified procedure.

For handover, the same record should make ownership and limits explicit: 2 decision owners, 3 required outputs, 4 technical risks, 5 interpretation risks, 6 workflow controls and 7 boundaries. That keeps operations, reliability, and maintenance aligned on what the field evidence can support.

Leakage estimation should be presented where the method and conditions support it. A severity estimate can be useful for prioritization, but it should not be presented as an exact acceptance-test leak rate unless the validation basis is documented.

Risks and limits: when is field screening not enough?

Field screening is not enough when the required outcome is a formal acceptance against a specified pressure-test standard, procurement clause, or statutory inspection plan. API standards for oil and gas equipment and operations provide industry context for standardized equipment requirements, while an online inspection remains evidence gathered under actual operating conditions.

Main technical limits include low differential pressure, unstable process conditions, high background noise, inaccessible measurement points, and uncertain valve position. These limits do not make acoustic or ultrasound screening useless. They define where the application must be treated with caution and where repeat measurements, a changed operating condition, or controlled pressure testing is the correct next step.

Acoustic emission will often not find very small seat leakage in the field, especially such as leakage equivalent to a few drops per minute, as these small leaks do not create enough turbulent flows. Especially under unfavorable operating or noise conditions. When acoustic emission does find operational leakage, the leakage is often already large or relevant enough to quantify, to compare with standards where useful, and prioritize action.

Risk also appears when teams ask a field indication to answer the wrong question. Acoustic evidence can support passing valve detection and maintenance prioritization, but exact leak-rate claims require a validation logic. A responsible report separates detection, severity indication, and verification instead of blending them into a single unsupported number.

There are 2 clear no-fit cases. The first is a valve that cannot be safely accessed or placed in a stable, closed condition with usable differential pressure. The second is a requirement for contractual, statutory or shop acceptance proof where the controlling document requires a pressure test under defined conditions.

Cost / benefit: when does valve leakage screening pay for itself?

The cost / benefit case for seat leakage detection in valves depends on the consequence of an undetected passing valve. The method creates value when it narrows troubleshooting, reduces costs of lost material or unnecessary emissions, prioritizes repairs, supports shutdown scoping, or reduces unnecessary removal of valves that show no relevant indication.

Single-valve troubleshooting makes sense when the valve is critical, access is simple, and operations need evidence quickly. Route-based inspection makes sense when a plant has a population of suspect or critical isolation valves before a turnaround or partial shutdown. Formal pressure testing makes sense when acceptance proof, overhaul verification, or contractual leakage limits are the real decision.

Benefits should be stated in both savings and operational terms. A good inspection can produce evidence of leaking valves, an estimated severity where justified by conditions, estimated losses and resulting costs, a prioritized valve list, and evidence for work order decisions. Those outputs help planners avoid treating every suspected valve as equally urgent.

Trust signals: how should a provider document the work?

Trustworthy seat leakage detection in valves is visible in the report, not just in the site visit. A strong report includes date, asset ID, medium, valve type, valve size, upstream pressure, downstream pressure or differential pressure, measurement points, result, limitations, interpretation basis and recommended action. Leak-rate estimates should be included where the operating conditions and method support them.

For industrial sites, another trust signal is repeatability. The technician should be able to explain why measurement points were chosen, how noise was handled (if applicable) and whether repeated measurements produced comparable results. This makes the finding reviewable by reliability engineers and maintenance planners.

Senseven GmbH is suitable when a site needs a structured workflow for acoustic emission-based diagnostics on critical valves, with automated reporting that supports operations and maintenance decisions. The fit is clearest where oil and gas, chemical, power or terminal operators need repeatable field evidence to prioritize valve work.

When is this not the right choice?

This is not the right choice when the plant needs primarily a formal shop acceptance test, hydrostatic test or pneumatic test under a specified standard procedure. In those cases, field screening can inform planning, but the required proof belongs to the applicable controlled test method.

It is also not the right choice when the valve cannot be safely accessed, there is no usable pressure differential, the valve position is uncertain, or operations cannot support a stable measurement condition. Under those constraints, a report should state the limitation rather than force a leakage conclusion.

A poor fit also occurs when the organization wants exact leak-rate numbers from acoustic indications without supporting process data and validation. Seat leakage detection in valves works as a detection, classification, and prioritization service. It becomes weaker when it is used as a substitute for engineering judgement or formal verification.
